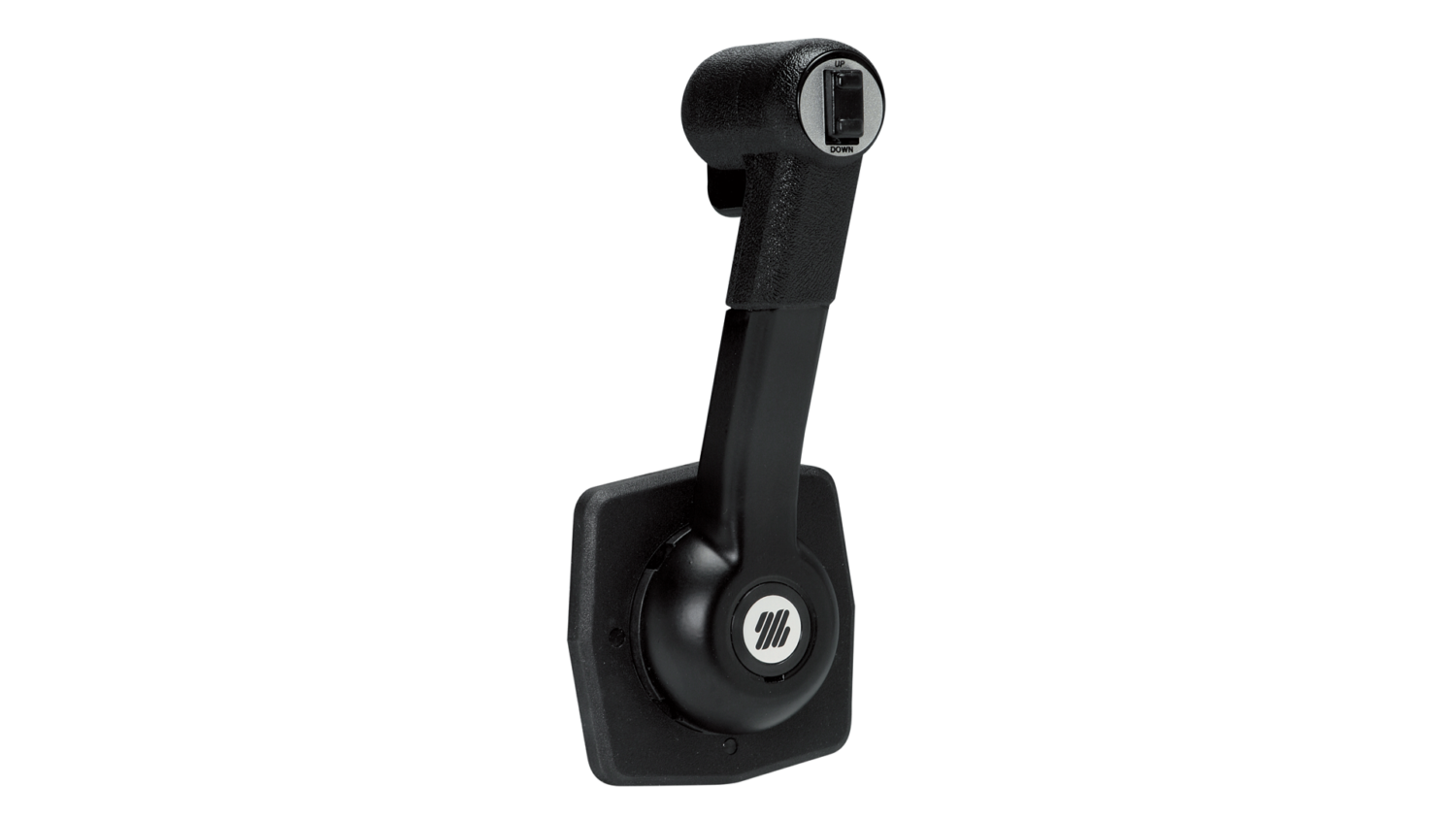

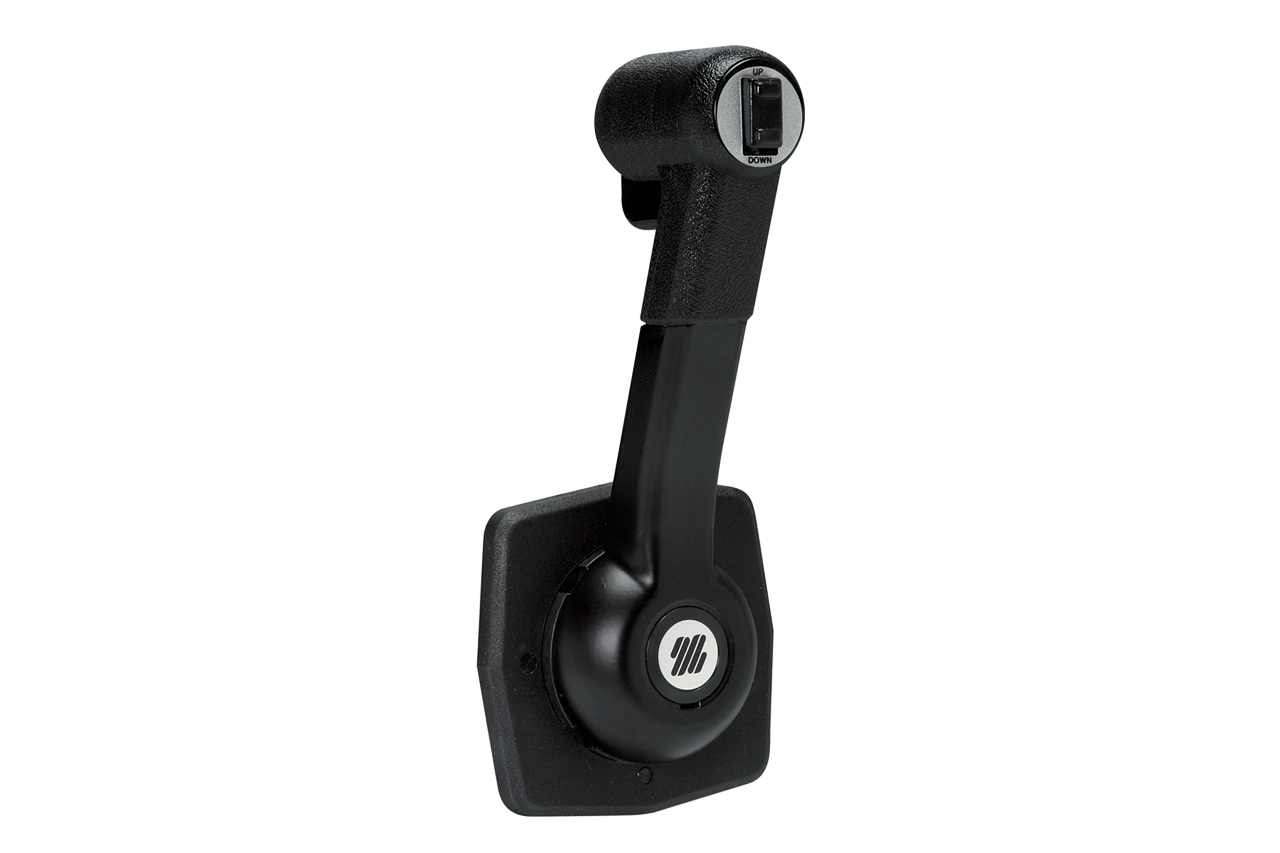

Single lever / dual action control to operate both throttle and shift.
Suitable for any type of boats with outboard, inboard or I/O power plants.
• Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling
• Can be installed horizontally or vertically, on the starboard or port side of the boat
• Provided with a throttle friction system adjustable from outside
• Pull-out handle disengages shift for warm-up
• Neutral safety switch X12 – 34543Q (optional) prevents in-gear starting
• Exceeds EN ISO 11547 standards when X12 safety switch is installed
• Provided with positive lock-in neutral to prevent accidental gear engagement
• For use with all Ultraflex engine control cables except C22, C36 and MACH36.
• Ultraflex C5, C16 and MACH5 cables require K35 – 34730U connection kit
• Ultraflex C22 cable requires KB1 – 39964L connection kit
| Label | Value |
|---|---|
| Assembly | Side Mount |
| Installation | Horizontally or Vertically |
| Application | outboards, sterndrives & inboard |
| Version | Fully mechanical |
| Adjustable friction | Provided |
| Pull-out handle for warm-up | Provided |
| Positive lock-in neutral | Provided |
| Power trim switch | Provided |
| X12 Neutral Safety Switch | Optional |
| EN ISO 11547 | Yes, when X12 safety switch is installed |
| Control cables | C2, C8, C14, MACHZero, MACH14 |
| Control cables that require a connection kit | C5, C16, MACH5 (K35); |
| Model | Part Number | Description |
|---|---|---|
| B184 | 38946D | Provided with a positive lock-in neutral and trim switch |
