T91 High Efficiency Rotary Helm
T91 High Efficiency Rotary Helm
Specifically designed for high-performance rotary steering and high-efficiency applications, particularly suitable when clearance is limited. 4.2 approx steering wheel turns lock to lock

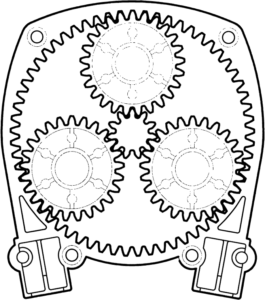

Planetary Gear Design
• Specifically designed for high performance and high efficiency applications
• M90 Mach cable (patented): performance, flexibility and durability increased by top quality materials and construction.
• Fast connect, simple installation, patented end fitting.
• Stainless steel cable output end featuring patented gasket, engine side
• Corrosion resistant materials
• Standard 3/4” tapered shaft
• Minimal feedback
• T91 steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
• For boats faster than 50 mph our hydraulic steering systems are recommended
• Optional steering wheel
• Engine connection kits
• T91 is also available in package with FOURTECH-I
• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards
| Label | Value |
|---|---|
| Installation | 90° or 20° |
| M90 steering cable stroke | 228 mm (9") |
| Lock-to-lock steering wheel turns | approx. 4,2 |
| Max. steering wheel diameter | 406 mm (16") |
| Suggested steering cable bend radius | 200 mm (7.87") |
| Min. steering cable bend radius | 150 mm (5.9") |
| Model | Part Number | Description |
|---|---|---|
| T91 | 42647S | Single cable steering helm |
| X34 | 36654B | Black bezel, 90° mounting |
| X34W | 40654C | White bezel, 90° mounting |
| X91 | 42850N | Chrome bezel, 90° mounting |
| X90 | 42646P | Chrome bezel, 90° mounting with lock device |
| X35 | 36655C | Black bezel, 20° mounting |
