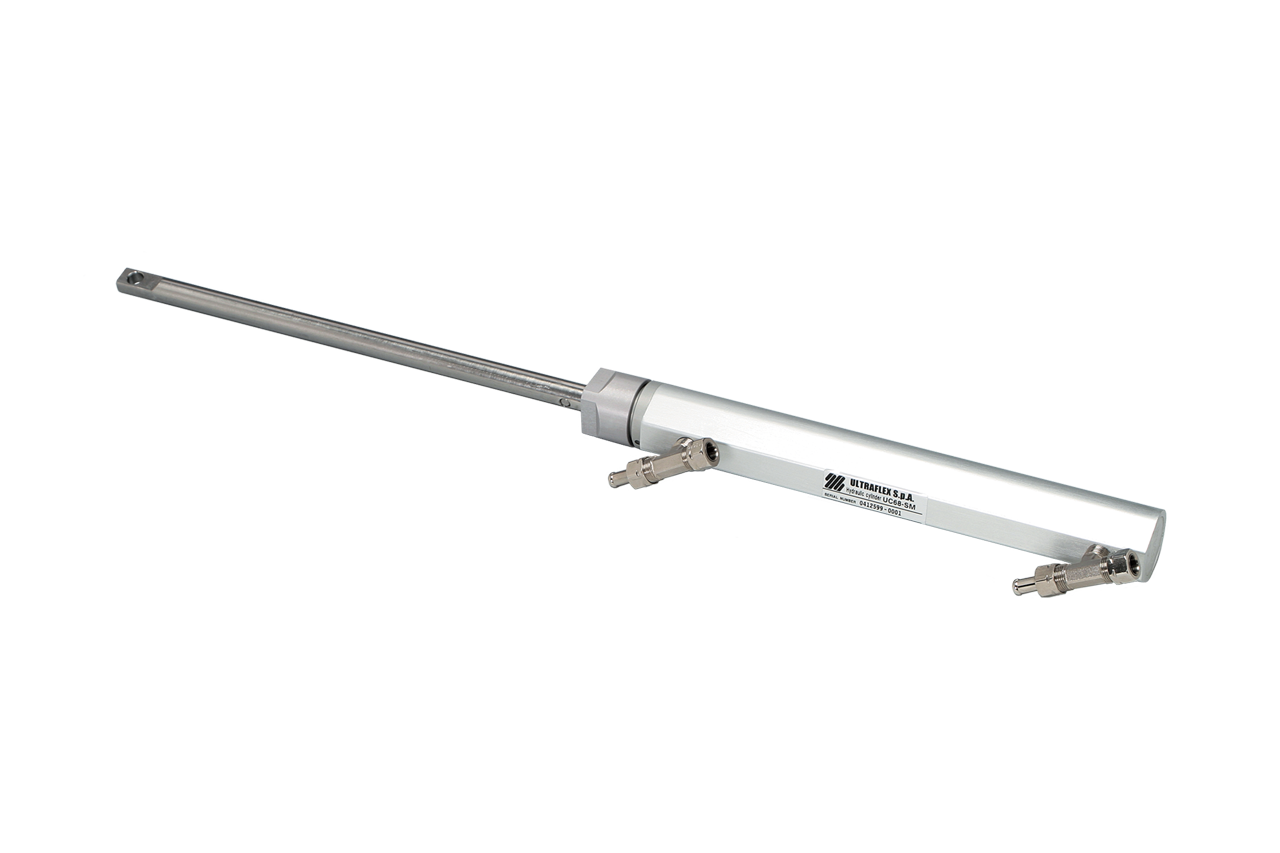

UC68-OBS Side Mount Cylinder

UC68-OBS Side Mount Cylinder

• UC68-OBS – Unbalanced: the number of wheel turns lock-to-lock is not equal port to starboard and vice-versa
• This side mount cylinder features a turning nut for a fast and easy installation to the engine tube (PATENTED)
• Clearance required at the engine tube side: 13.3” (340 mm)

APPLICATIONS:
Recommended for use where max boat speed do not exceed 46 mph (40 knots)
Also available in Steering kit: GOTECH-OBS, HYCO-OBS and HYCO-OBS/M

Label Value
Volume 68/100 cc - 4.1/6.1 cu.in
Output force 185/270 kg (408/595 lbs)
Internal diameter 25 mm (0.98")
Stroke 203 mm (8")
Fittings for high pressure flex hose 3/8"

Model Part Number Description
UC68-OBS 39784J Side mount cylinder for outboard engines up to 150 hp
